Detailed Description

SPIFlash provides access to a SPI Flash IC for OTA update or storing data.

IMPORTANT: NAND FLASH memory requires erase before write, because it can only transition from 1s to 0s and only the erase command can reset all 0s to 1s See http://en.wikipedia.org/wiki/Flash_memory The smallest range that can be erased is a sector (4K, 32K, 64K); there is also a chip erase command

Standard SPI flash commands
Assuming the WP pin is pulled up (to disable hardware write protection).
To use any write commands the WEL bit in the status register must be set to 1.
This is accomplished by sending a 0x06 command before any such write/erase command.
The WEL bit in the status register resets to the logical ?0? state after a device power-up or reset. In addition, the WEL bit will be reset to the logical ?0? state automatically under the following conditions:

Write Disable operation completes successfully
Write Status Register operation completes successfully or aborts
Protect Sector operation completes successfully or aborts
Unprotect Sector operation completes successfully or aborts
Byte/Page Program operation completes successfully or aborts
Sequential Program Mode reaches highest unprotected memory location
Sequential Program Mode reaches the end of the memory array
Sequential Program Mode aborts
Block Erase operation completes successfully or aborts
Chip Erase operation completes successfully or aborts
Hold condition aborts

Definition in file SPIFlash.h.

#include <wiring.h>
#include "pins_arduino.h"
#include <SPI.h>

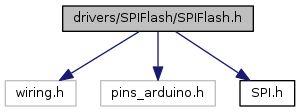

Include dependency graph for SPIFlash.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	SPIFlash

Macros
#define	SPIFLASH_WRITEENABLE 0x06
	write enable

#define	SPIFLASH_WRITEDISABLE 0x04
	write disable

#define	SPIFLASH_BLOCKERASE_4K 0x20
	erase one 4K block of flash memory

#define	SPIFLASH_BLOCKERASE_32K 0x52
	erase one 32K block of flash memory

#define	SPIFLASH_BLOCKERASE_64K 0xD8
	erase one 64K block of flash memory

#define	SPIFLASH_CHIPERASE 0x60
	chip erase (may take several seconds depending on size) More...

#define	SPIFLASH_STATUSREAD 0x05
	read status register

#define	SPIFLASH_STATUSWRITE 0x01
	write status register

#define	SPIFLASH_ARRAYREAD 0x0B
	read array (fast, need to add 1 dummy byte after 3 address bytes)

#define	SPIFLASH_ARRAYREADLOWFREQ 0x03
	read array (low frequency)

#define	SPIFLASH_SLEEP 0xB9
	deep power down

#define	SPIFLASH_WAKE 0xAB
	deep power wake up

#define	SPIFLASH_BYTEPAGEPROGRAM 0x02
	write (1 to 256bytes). Writing more than one Byte is not supported on all devices (e.g. SST25 Series)

#define	SPIFLASH_AAIWORDPROGRAM 0xAD
	Auto Address Increment Programming on Microchip SST Family Devices which do not support page program. More...

#define	SPIFLASH_IDREAD 0x9F
	read JEDEC manufacturer and device ID (2 bytes, specific bytes for each manufacturer and device) More...

#define	SPIFLASH_MACREAD 0x4B
	read unique ID number (MAC)

#define	MY_SPIFLASH_SST25TYPE
	If set AAI Word Programming is used to support SST25 Family SPI Flash. More...

Macro Definition Documentation

◆ MY_SPIFLASH_SST25TYPE

#define MY_SPIFLASH_SST25TYPE

If set AAI Word Programming is used to support SST25 Family SPI Flash.

SST25 Family Flash does not support programming multiple Bytes with opcode 0x02 SPIFLASH_BYTEPAGEPROGRAM.
If SPIFLASH_SST25TYPE is set and writeBytes is called, it will use opcode 0xAD SPIFLASH_AAIWORDPROGRAM and care for Byte alignment.
Note: AAI Wordprogramming is independent of Pages, so pagebreaking is not an issue when using AAI Wordprogramming.

Definition at line 157 of file SPIFlash.h.

◆ SPIFLASH_AAIWORDPROGRAM

#define SPIFLASH_AAIWORDPROGRAM 0xAD

Auto Address Increment Programming on Microchip SST Family Devices which do not support page program.

Use define MY_SPIFLASH_SST25TYPE to use AAI prog instead of Bytepageprogram which does not work on SST Family Chips tested with SST25PF020B80 http://ww1.microchip.com/downloads/en/DeviceDoc/20005135B.pdf

Definition at line 133 of file SPIFlash.h.

◆ SPIFLASH_CHIPERASE

#define SPIFLASH_CHIPERASE 0x60

chip erase (may take several seconds depending on size)

Chip is erased but not actually waited for completion (instead need to check the status register BUSY bit)

Definition at line 100 of file SPIFlash.h.

◆ SPIFLASH_IDREAD

#define SPIFLASH_IDREAD 0x9F

read JEDEC manufacturer and device ID (2 bytes, specific bytes for each manufacturer and device)

Example for Atmel-Adesto 4Mbit AT25DF041A: 0x1F44 (page 27: http://www.adestotech.com/sites/default/files/datasheets/doc3668.pdf) Example for Winbond 4Mbit W25X40CL: 0xEF30 (page 14: http://www.winbond.com/NR/rdonlyres/6E25084C-0BFE-4B25-903D-AE10221A0929/0/W25X40CL.pdf)

Definition at line 139 of file SPIFlash.h.
